Electromechanical Rotary Actuators

Gun/Turret/Radar Drives for Land Systems

Moog’s electromechanical rotary actuators are designed to meet or exceed the demanding requirements of new and existing land system gun, turret, and radar applications through world-class stabilization and pointing accuracy. These actuators are used for new and existing combat vehicle platform control applications, heavy payloads requiring high slew-to-cue capability, and as a power drive unit for larger mechanical actuated systems.



CONTACT OUR EXPERTS>

Overview

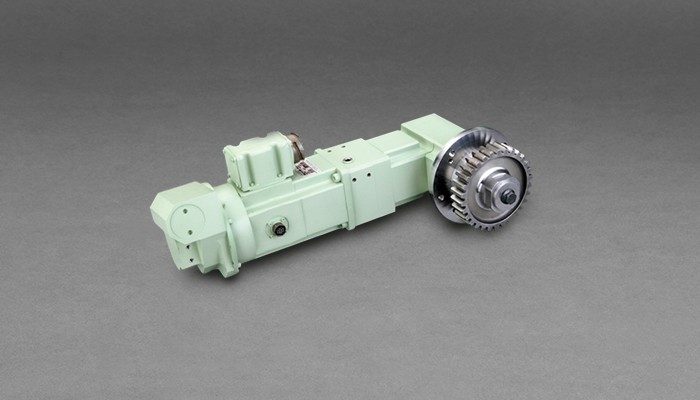

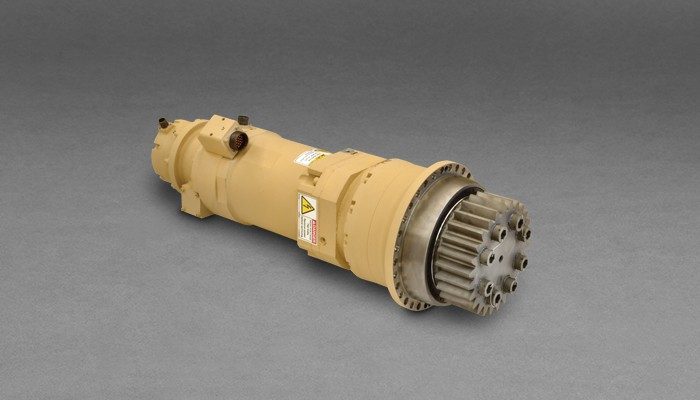

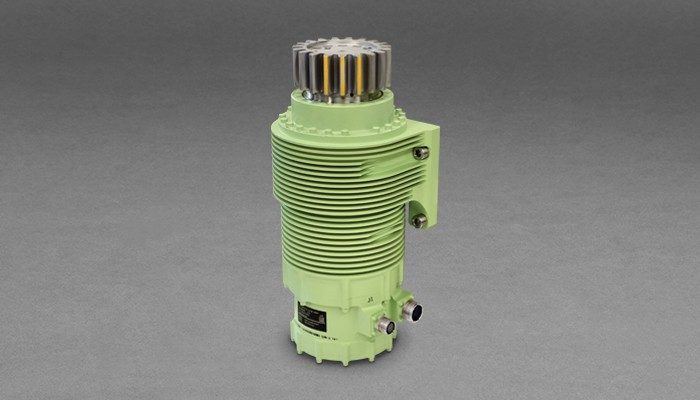

Features include a brushless DC motor which can be integrated in a 28VDC system up to a 600VDC system. The output pinion of the actuator can pair with a ring or sector gear or can couple directly to the load. The gear can be modified to mate with any customer defined ring/sector gear. The actuator also features a failsafe clutch, manual drive, and no-back.

Moog is a worldwide designer, manufacturer, and integrator of custom precision motion control and stabilization systems for the defense industry. Our electromechanical rotary and linear actuators are ideal for new systems, upgrades to older hydraulic systems, and for sustainment services.

KEY FEATURES

  • Brushless DC motor (28VDC to 600VDC options)
  • Integrated brushless resolver or absolute encoder for motor commutation
  • Output pinion designed to interface with customer defined ring/sector gear
  • Integrated failsafe 18VDC to 32VDC clutch
  • Integrated manual drive with custom input ratios

  • No-back (optional)
  • Design, tested, and qualified to MIL-STD 810E and MIL-STD 461E
  • MIL-Spec electrical connectors
  • On board absolute encoder position sensor (optional)
  • Oil filled for lubrication and heat management (optional)



Models and Specifications
