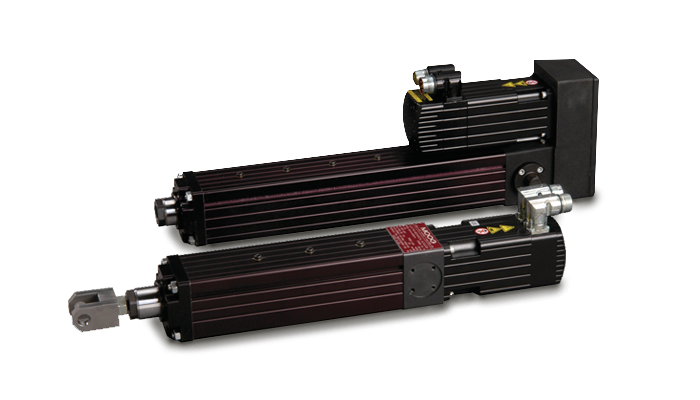

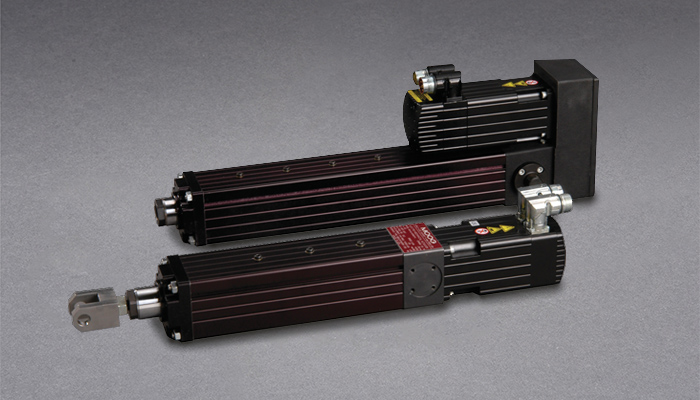

Flexible Electric Linear Servo Actuators

Slide Background

**This product is no longer available for new applications**


Advantages

  • Higher efficiency for same payload
  • Long-lasting performance and reliability
  • Higher forces, rod speeds and loner strokes
  • Inline and foldback design with internal anti-rotate
  • Variety of motor-windings for optimum performance
  • Several screw leads for speed/force variations


Contact Our Experts

Jump To:
Specifications
Resources

Specifications

Specifications
Frame Sizes 3, 4, 5, 6
Design Style Inline, foldback
Lead lengths 5, 10, 20 mm (.197, .394, .787 in)
Continuous Stall Force 1.02 to 95.99 kN (229 to 21,581 lbf)
Peak Stall Force 3.56 to 115.59 kN (801 to 25,987 lbf)
Brake Holding Force - optional 1.25 to 140.50 kN (280 to 31,588 lbf)
Maximum Speed 138 to 1,600 mm/sec (5.5 to 63.0 in/sec)
