AG-5250 Brushless Alternators

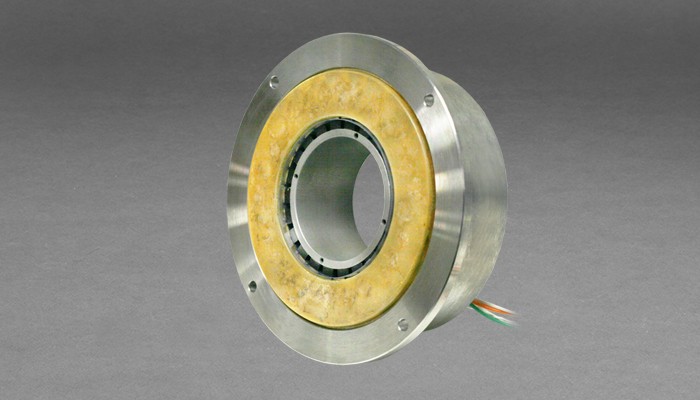

AG-5250 Brushless Alternator

Moog's AG-5250 brushless permanent magnet alternators are used in applications that require high power density. These alternators are available in a wide range of sizes. The AG Matrix™ series alternators have outside diameters from 5.25 to 22 inches (133.35 mm to 558.8 mm) with multiple stack sizes and winding options for each diameter.

For more information about how AG-5250 alternators can be tailored to fit your specific application, contact our applications engineers.

CONTACT OUR EXPERTS >

Details, Features and Typical Applications

FEATURES

  • High performance per volume
  • Small footprint
  • Maximum ouput power and efficiency
  • Double insulated high temp magnet wire minimizes leakage current and provides good thermal resistance

TYPICAL APPLICATIONS

  • Auxiliary power generation
  • Wind energy
  • Onboard power generation for manned and unmanned vehicles

Specifications



Model
 Continuous Rated Power (w) Rated Speed (rpm) Voltage
(V rms)
at Rated Power		 Current (Amps rms)
at Rated Power		 Efficency (%)
at Rated Power		 Input Torque at Rated Speed
lb.ft (N.m)		 OD* ID Weight
AG-5250
-A-1ES		 345 650 237 0.84 78 5.06
(6.86)		 5.250
(133.35)		 2.35
(59.69)
 5.2
(2.36)
AG-5250
-A-2ES		 1000 1500 260 2.24 90 5.44
(7.38)		 5.250
(133.35)
 2.35
(59.69)		 5.2
(2.36)
AG-5250
-B-1ES		 529 650 242 1.26 80 7.39
(10.02)		 5.250
(133.35)
 2.35
(59.69)
 7.2
(3.27)
AG-5250
-B-2ES		 1411 1500 260 3.13 90 7.55
(10.204)		 5.250
(133.35)
 2.35
(59.69)
 7.2
(3.247)
AG-5250
-C-1ES		 717 650 244 1.74 82 9.76
(13.24)		 5.250
(133.35)
 2.35
(59.69)
 9.1
(4.13)
AG-5250
-C-2ES		 1895 1500 238 4.29 90 10.10
(13.70)		 5.250
(133.35)
 2.35
(59.69)
 9.1
(4.13)
AG-5250-D
-1ES		 903 650 247 2.11 84 12.10
(16.41)		 5.250
(133.35)
 2.35
(59.69)
 10.9
(4.94)
AG-5250-D
-2ES		 2343 1500 260 5.20 91 12.40
(16.81)		 5.250
(133.35)
 2.35
(59.69)
 10.9
(4.94)
AG-5250
-E-1ES		 1031 650 247 2.42 85 13.80
(18.71)		 5.250
(133.35)
 2.35
(59.69)
 12.7
(5.76)
AG-5250
-E-2ES		 2708 1500 263 5.94 90 14.30
(19.39)		 5.250
(133.35)
 2.35
(59.69)
 12.8
(5.80)
AG-5250
-F-1ES		 1400 650 250 3.23 86 18.40
(24.95)		 5.250
(133.35)
 2.35
(59.69)
 16.5
(7.48)
AG-5250
-F-2ES		 3590 1500 259 8.01 91 18.90
(25.63)		 5.250
(133.35)
 2.35
(59.69)		 16.6
(7.53)

Ambient Temperature = 25° C.
Winding temperature rating permissible to 155° C.
Assumes stator housing covers entire stator OD in contact with ambient air at 25° C.
Operation with unity power factor.
Rated 230 VAC phase to phase ±10%, voltage level may be adapted according to the application.
All alternators are three phase, all voltages expressed as phase to phase.

*Dimensions do not reflect mounting lip.
Stack lengths from 025 to 10.00 inches (6.35 to 254 mm)
