AG-8000 Brushless Alternators

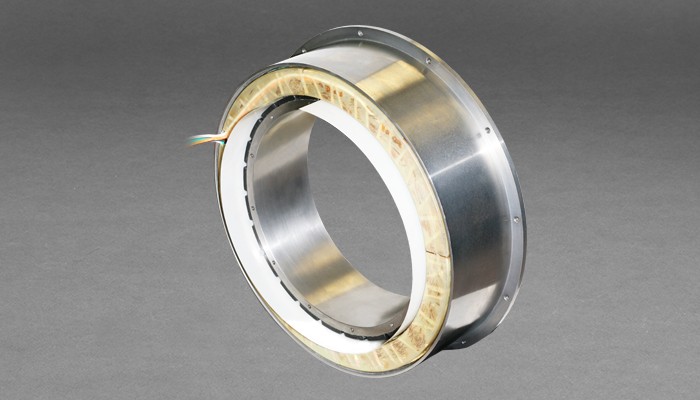

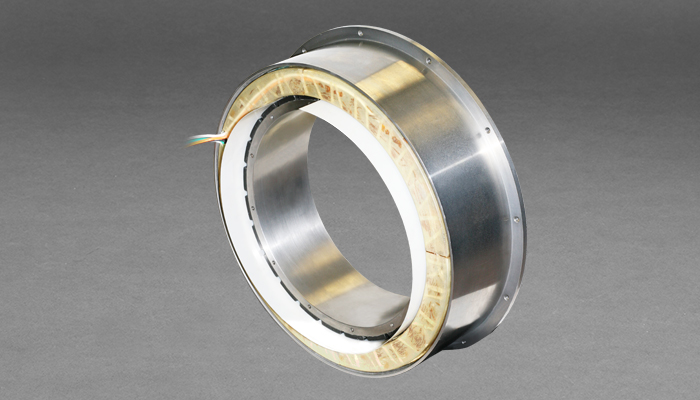

Brushless Alternator

Moog's AG-8000 brushless permanent magnet alternators are used in applications that require high power density. These alternators are available in a wide range of sizes. The AG Matrix™ series alternators have outside diameters from 5.25 to 22 inches (133.35 mm to 558.8 mm) with multiple stack sizes and winding options for each diameter.

For more information about how AG-8000 alternators can be tailored to fit your specific application, contact our applications engineers.

CONTACT OUR EXPERTS >

Details, Features and Typical Applications

FEATURES

  • High performance per volume
  • Small footprint
  • Maximum ouput power and efficiency
  • Double insulated high temp magnet wire minimizes leakage current and provides good thermal resistance

TYPICAL APPLICATIONS

  • Auxiliary power generation
  • Wind energy
  • Onboard power generation for manned and unmanned vehicles

Specifications



Model
 Continuous Rated Power (w) Rated Speed (rpm) Voltage
(V rms)
at Rated Power		 Current (Amps rms)
at Rated Power		 Efficency (%)
at Rated Power		 Input Torque at Rated Speed
lb.ft (N.m)		 OD* ID Weight
AG-8000
-A-1ES		 1249 3600 208 3.48 88.5 2.9
(3.9)		 8.000
(203.2)		 3.00
(76.2)		 8.2
(3.72)
AG-8000
-B-1ES		 2529 3600 210 6.96 91.5 5.7
(7.7)		 8.000
(203.2)
 3.00
(76.2)
 13.0
(5.90)
AG-8000
-C-1ES		 3819 3600 212 10.4 92.2 8.5
(11.5)		 8.000
(203.2)
 3.00
(76.2)
 19.0
(8.62)
AG-8000
-D-1ES		 5068 3600 211 13.9 92.5 11.2
(15.2)		 8.000
(203.2)
 3.00
(76.2)
 24.0
(10.89)
AG-8000
-E-1ES		 6434 3600 218 17.0 92.5 14.2
(19.2)		 8.000
(203.2)
 3.00
(76.2)
 29.0
(13.15)
AG-8000
-F-1ES		 7722 3600 218 20.4 92.5 17.0
(23.1)		 8.000
(203.2)
 3.00
(76.2)
 35.0
(15.88)
AG-8000
-G-1ES		 10061 3600 215 27.0 92.5 22.2
(30.1)		 8.000
(203.2)
 3.00
(76.2)
 45.0
(20.41)
AG-8000
-H-1ES		 12780 3600 219 33.7 92.3 28.2
(38.2)		 8.000
(203.2)
 3.00
(76.2)
 55.0
(24.95)

Ambient Temperature = 25° C.
Winding temperature rating permissible to 155° C.
Assumes stator housing covers entire stator OD in contact with ambient air at 25° C.
Operation with unity power factor.
Rated 230 VAC phase to phase ±10%, voltage level may be adapted according to the application.
All alternators are three phase, all voltages expressed as phase to phase.

*Dimensions do not reflect mounting tip.
Stack lengths from 025 to 16.00 inches (6.35 to 406.4 mm)
