Pilot Valves and Accessories for Cartridge Valve Controls
Related products

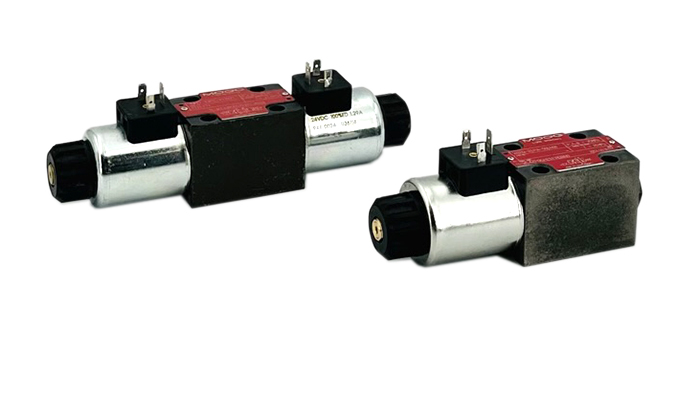

Directional Control Valves “WE42” and “WE43” - X820 Series
Moog’s direct operated X820 Series Directional Control Valve conforms to CETOP 03 standard interface. It is designed to be manifold mounted, or used in conjunction with the stack valve system.

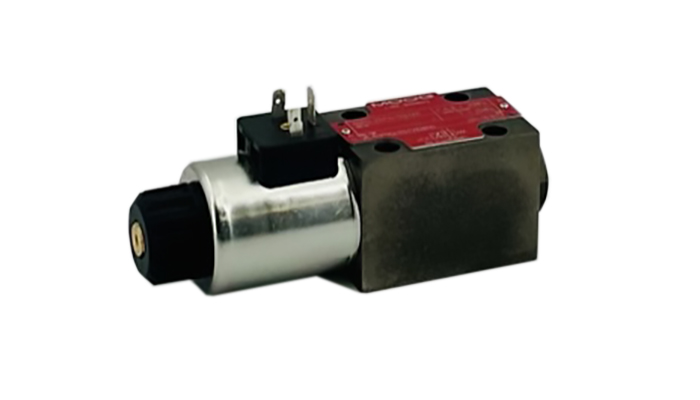

Directional Control Valve with Flow Control Function “WE42…MC” - X820 Series
Moog’s direct operated X820 Series Directional Control Valve conforms to CETOP 03 standard interface. It is designed to be manifold mounted, or used in conjunction with the stack valve system.
Additionally to the directional valve function the WE42...MC valve type are equiped with a flow control function when deenergized to enable a better control of the opening behaviour of the main stage cartridge.

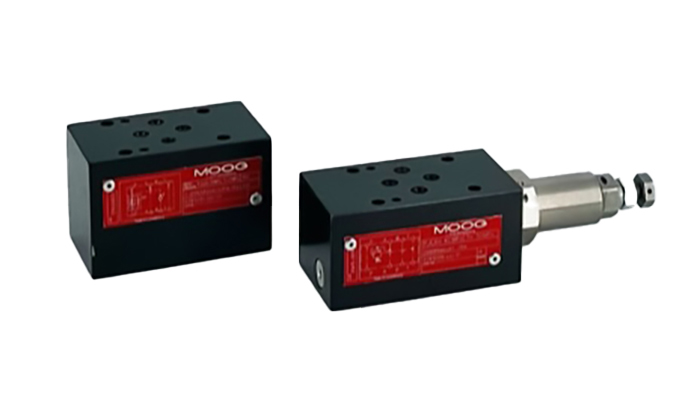

Modular Valves (Sandwich Plate Valves), Directional and Pressure Function - Z…P06 and Z…P10 Series
To realize the most common cartridge valve functionalities, Moog offers a wide range of modular valves in the nominal sizes 06 (Cetop 03) and size 10 (Cetop 05), like sandwich plate valves for throttle, check functions and for pressure relief and pressure reducing functions.

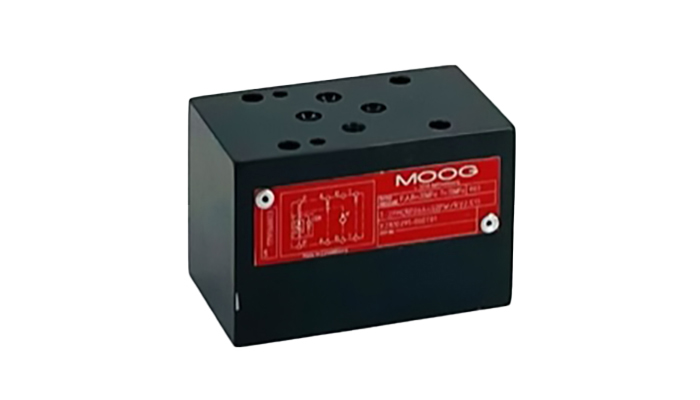

Sandwich Plate Valve with Flow Control Function - ZFM2 Series
The ZFM2 is a sandwich plate valve with a flow control function in port A. The flow control function is active for flows from port A1 to port A2. Parallel to the flow control valve is a bypass check valve enabling free flow from port A2 to port A1.
