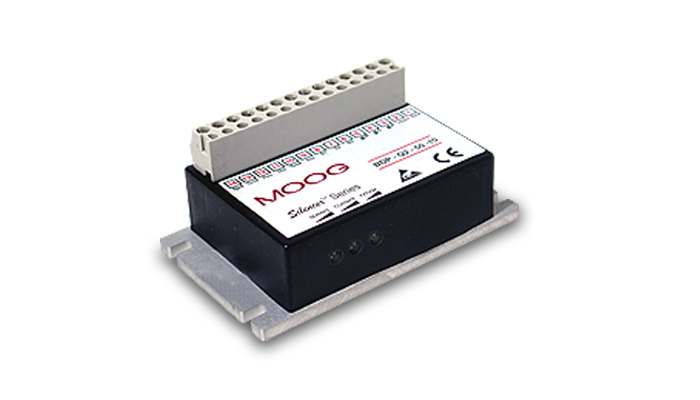

Silencer® Series Drive Electronics 2-Quadrant Speed Controllers for Brushless Motors
Jump To:
Overview
Models
Resources
Related Products
Features
- 2-quadrant speed controllers for brushless motors
- Feedback using Hall effect sensors
- Motor speed is set by either an internal or external potentiometer
- Motor rotation direction can be present by the direction control input; the controller output stage can be activated and deactivated by the disable control input
- Maximum constant current can be adjusted via an on-board potentiometer
- Internal thermal cutoff prevents heat overload
- Very high efficiency is achieved by using POWER-MOS-FET technology in the controller output stage
- Efficient PWM speed control
- Operating temperatures from -10 to 45°C and storage temperatures from -40 to 85°C
Benefits
- Compact packaging minimizes space demands
- Matched drives and motors from a single supplier
- Complete system testing provides high reliability
- Terminal block connections for ease of wiring
- Multiple methods of speed control
- Input voltage
- Internal potentiometer
- External potentiometer
- External voltage reference
Markets
- Industrial Production Machinery
- Plastic Machinery
- Simulation
- Metal Forming Machinery and Presses
- Gas and Steam Turbines
- Wind Energy
- Oil and Gas Generation and Production
Models and Specifications
| Model | Mode of Operation | Max Power watts |
Input Voltage volts |
Max. Motor Current amps |
Size LxWxH in |
| BDO-Q2-40-05-01 | 2 Quadrant - Velocity | 175 | Dec-40 | 5 | 3.54x1.81x1.97 (90x30x50) |
| BDP-Q2-50-10 | 2 Quadrant - Velocity | 475 | 20 - 50 | 10 | 3.70x2.17x1.54 (94x55x39) |
| BDO-Q2-50-18 | 2 Quadrant - Velocity | 850 | 20 - 50 | 18 | 6.69x3.54x1.73 (170x90x44) |
| BDO-Q2-50-40 | 2 Quadrant - Velocity | 1900 | 20 - 50 | 40 | 6.69x3.54x1.7 (170x90x44) |
