Multi-Channel FORJ

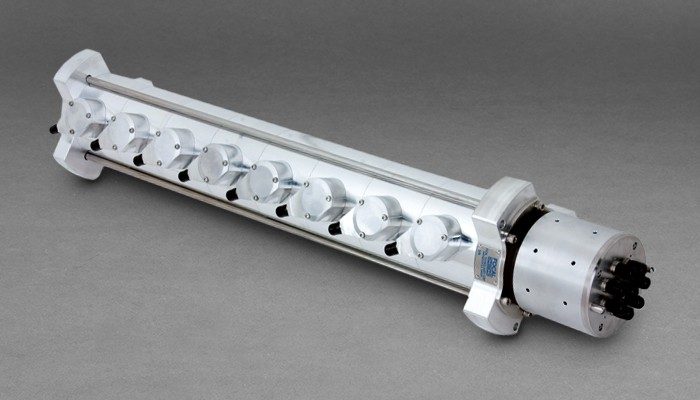

Slide Background

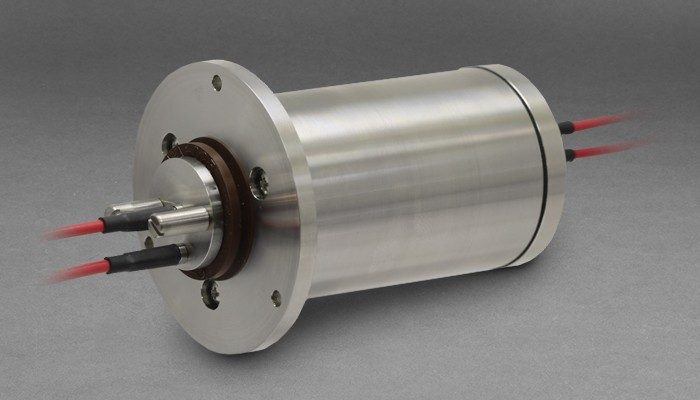

Slide Background

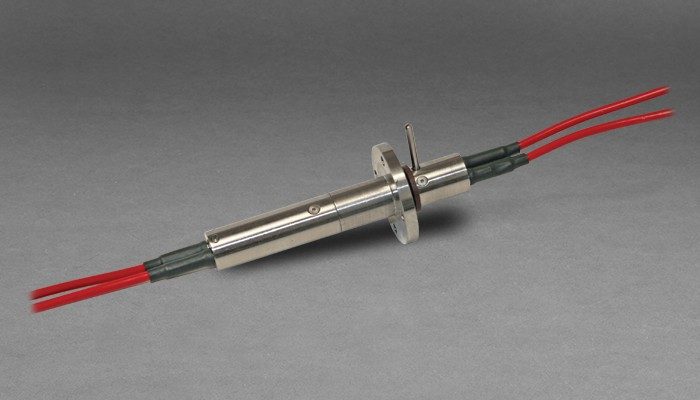

Slide Background

Fiber Optic Rotary Joints (FORJ) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. Moog has been producing Fiber Optic Rotary Joints for over twenty years.

Contact Our Experts

Jump To:
Products
Related Products

Products

Specifications

Model Fiber Type Channels Insertion Loss Maxium Rotation Speed Size: Minimum Length
in (mm)		 Size: Flange Diameter
in (mm)		 Size: Drum Diameter
in (mm)
FO292 Multimode 2 6 dB 500+ 2.25 (57.15) 1.25 (31.75) 0.50 (12.70)
FO292RA Multimode 2 5.5 dB 500 1.73 (43.87) 1.05 (26.7) 0.67 (17.1)
FO291 Singlemode  2 to 9 6.5 dB 100+ See Data Sheet See Data Sheet See Data Sheet
FO190 Multimode 2 to 21 See Data Sheet 100 See Data Sheet 5.02 (127.5) 5.00 (127.0)
FO300A Singlemode and Multimode Up to 17 See Data Sheet 100 4.22 (107.2) 2.35 (60.0) 2.35 (60.0)
FO300B Singlemode and Multimode Up to 32 See Data Sheet 100 5.76 (146.2) 2.72 (69.1) 2.72 (69.1)
FO300C Singlemode  Up to 52 See Data Sheet 100 6.79 (172.5) 3.72 (94.5) 3.72 (94.5)
FO319 Singlemode 2 < 3.5 dB
 100
 4.13 (104.6)
 2.60 (66)
 1.90 (48.3)
