Motion Systems
Reliability. Expertise. Support.
Choose from a variety of actuator stroke lengths and payloads. Know that our all-electric solutions offer an unprecedented level of fidelity and reliability with uptimes greater than 99.8% giving you greater usage and profitability.
Helping you meet today’s simulation challenges with a wide variety of systems. The latest technology with higher levels of fidelity allow you to meet and outperform your requirements. Expert global support will always make sure that services are just a call away.
To help you find the absolutely best system to meet your need we have two families of systems for you: Standard and Special. Standard systems are optimized for quick delivery and your best value. Special Systems will virtually meet all your exceptional requirements.
Standard Motion Systems

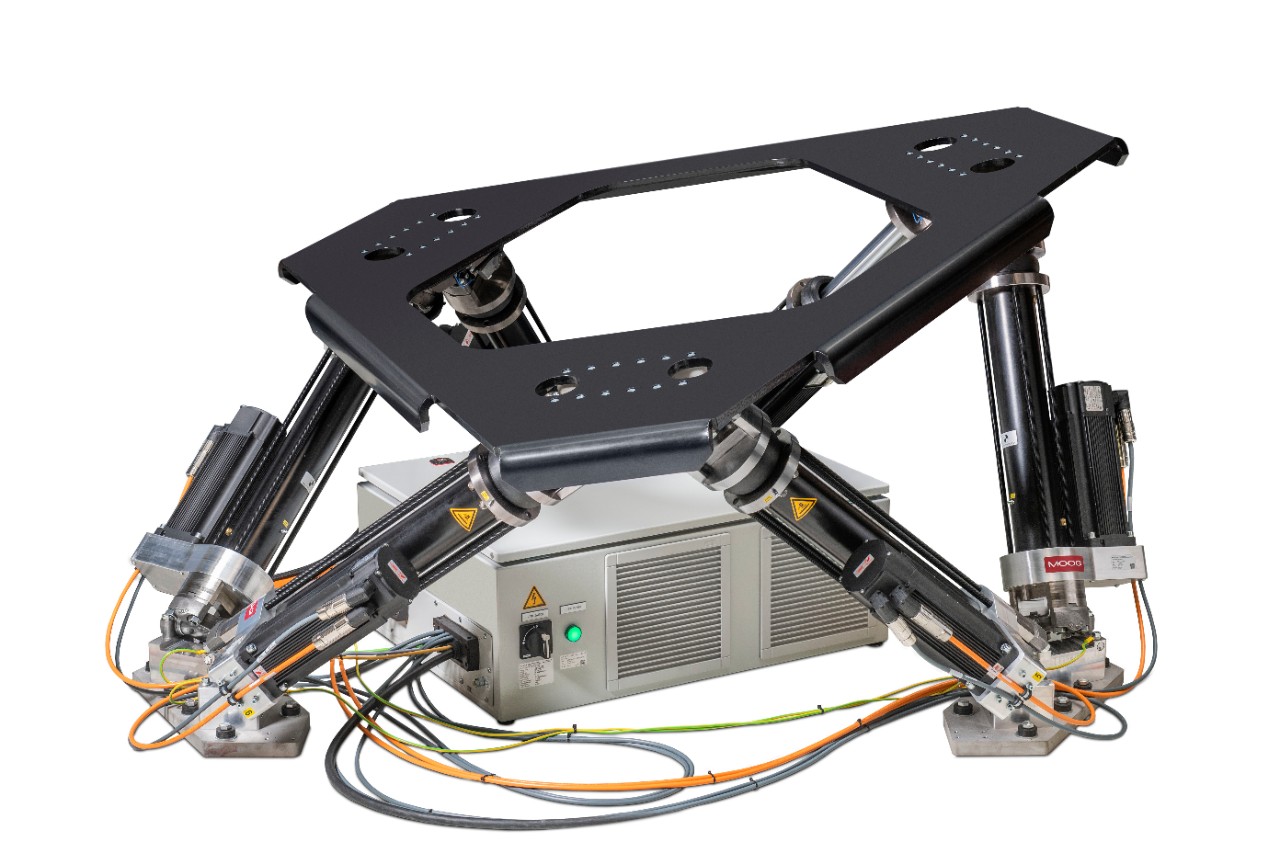

E12 Series: MB-E-6DOF/12/500KG
| PAYLOAD WEIGHT 500 kg / 1,102 lb | ||
|---|---|---|
| Heave (max): ±0.19 m (±7.5 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Sway | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Heave | ±8.0 m/s², ±8.2 g | ±0.50 m/s (±19.7 in/s) |
| Roll | ±300°/s² | ±40.0°/s |
| Pitch | ±300°/s² | ±50.0°/s |
| Yaw | ±500°/s² | ±50.0°/s |
E12 Series: MB-E-6DOF/12/1500KG
| PAYLOAD WEIGHT 1,500 kg / 3,307 lb | ||
|---|---|---|
| Heave (max): ±0.19 m (±7.5 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Sway | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Heave | ±8.0 m/s² (±0.82 g) | ±0.50 m/s (±19.7 in/s) |
| Roll | ±300°/s² | ±40.0°/s |
| Pitch | ±300°/s² | ±50.0°/s |
| Yaw | ±500°/s² | ±50.0°/s |
E26 Series: MB-E-6DOF/26/1800KG
| PAYLOAD WEIGHT 1,800 kg / 3,968 lb | ||
|---|---|---|
| Heave (max): ±0.41 m (±16.1 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | 7.0 m/s² (0.7 g) | 0.80 m/s (31.4 in/s) |
| Sway | 7.0 m/s² (0.7 g) | 0.80 m/s (31.4 in/s) |
| Heave | 10.0 m/s² (1.0 g) | 0.60 m/s (23.6 in/s) |
| Roll | 250°/s² | ±35.0°/s |
| Pitch | 250°/s² | ±35.0°/s |
| Yaw | 500°/s² | ±40.0°/s |
P26 Series: MB-EP-6DOF/26/3000KG
| PAYLOAD WEIGHT 3,000 kg / 6,613 lb | ||
|---|---|---|
| Heave (max): ±0.41 m (±16.1 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.3 m/s² (0.63 g) | ±0.80 m/s (31.4 in/s) |
| Sway | ±6.3 m/s² (0.63 g) | ±0.80 m/s (31.4 in/s) |
| Heave | ±9.0 m/s² (0.90 g) | ±0.60 m/s (23.6 in/s) |
| Roll | ±200°/s² | ±35.0°/s |
| Pitch | ±200°/s² | ±35.0°/s |
| Yaw | ±400°/s² | ±40.0°/s |
| PAYLOAD WEIGHT 14,000 kg / 30,865 lb | ||
|---|---|---|
| Heave (max): ±0.97 m (±38.4 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±7.0 m/s² (0.71 g) | ±1.0 m/s (±39.4 in/s) |
| Sway | ±7.0 m/s² (0.71 g) | ±1.0 m/s (±39.4 in/s) |
| Heave | ±9.0 m/s² (0.91 g) | ±0.80 m/s (±31.5 in/s) |
| Roll | ±150°/s² | ±22.0°/s |
| Pitch | ±150°/s² | ±21.0°/s |
| Yaw | ±150°/s² | ±25.0°/s |
| PAYLOAD WEIGHT 14,000 kg / 30,865 lb | ||
|---|---|---|
| Heave (max): ±0.960 m (±37.8 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ± 6.5 m/s2 (0.66 g) | ±1.00 m/s (39.4 in/s) |
| Sway | ± 6.5 m/s2 (0.66 g) | ±1.00 m/s (39.4 in/s) |
| Heave | ±9.0 m/s² (0.92 g) | ±0.80 m/s (31.5 in/s) |
| Roll | ±150°/s² | ±22.0°/s |
| Pitch | ±150°/s² | ±21.0°/s |
| Yaw | ±250°/s² | ±25.0°/s |
| PAYLOAD WEIGHT 14,000 kg / 30,865 lb | ||
|---|---|---|
| Heave (max): ±1.00 m (±39.4 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±5.9 m/s² (0.6 g) | ±0.71 m/s (28.0 in/s) |
| Sway | ±5.9 m/s² (0.6 g) | ±0.71 m/s (28.0 in/s) |
| Heave | ±7.9 m/s² (0.8 g) | ±0.61 m/s (24.0 in/s) |
| Roll | ±100°/s² | ±20.0°/s |
| Pitch | ±100°/s² | ±20.0°/s |
| Yaw | ±100°/s² | ±20.0°/s |
Special Motion System
When you require a performance envelope that has to be customized we can certainly meet your needs here.
