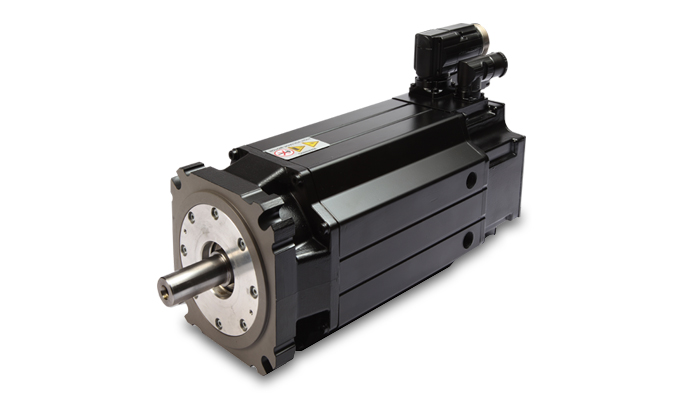

Maximum Dynamic Brushless Servo Motor

HIGH DYNAMICS FOR MORE PRODUCTION IN HIGH PERFORMANCE APPLICATIONS

Several machines across industries (such as injection molding machines) need to achieve very short acceleration and deceleration times. Traditional electric machine systems have limitations in acceleration and speed caused by the high inertia of their moving parts.

Moog Maximum Dynamic Brushless Servo Motors (MD Series) address the evolving need for greater dynamics through increased angular acceleration (ratio between peak torque and inertia) and higher performance in industrial applications. The electromagnetic design has exceptional overload capacity which result is an increase in the effective torque available to accelerate and decelerate the load, thereby enabling higher dynamics and reliability and improved cycle times and energy efficiency.

The wide range of MD series motors, combined with the ability to seamlessly integrate with existing infrastructure, reduces the need for redesign, limits cost and improves space utilization.


Contact Our Experts >

Features

Moog also provides Servo Drives that are matched to the MD Series motors for optimized system performance.

Highest Dynamics

  • Faster operation, higher performance
  • Increased productivity
  • Improved product quality through accurate control



Wide Servo Motor Range

  • Consistent modular design and characteristics for the full range of servo motors
  • Accelerated machine design process resulting from a wide range of readily available options



Greater Flexibility

  • Seamless integration into existing infrastructure
  • Lesser need for redesign, lesser costs

Markets

Specifications

Dimensions Measuring Units MD Series
Natural Cooling
MD Series
Liquid Cooling
Peak Torque Mmax Nm [lb-in] 10-2012
[88.5-17807]
64.2-2012
[568-17807]
Continuous Stall Torque M° Nm [lb-in] 2.2-629
[19.5-5567]
46-1034
[407-9152]
Rated Torque MN Nm [lb-in] 1.5-575
[13.3-5089]
45-1003
[398-8877]
Rated Speed nN min-1 [rpm] 5500-1400
5500-1400
Rated Power PN kW [hp] 0.85-34.6
[1.1-46]
9.35-60.4
[12.5-81]
Moment of Inertia J Kg cm2
[lb-insec2 x 10-4]
0.78-1985
[6.9-17569]
10.8-1985
[96-17569]
Position Transducer N/A Resolver
Encoder
Resolver
Encoder
