CD Servo Motor Family CD Series

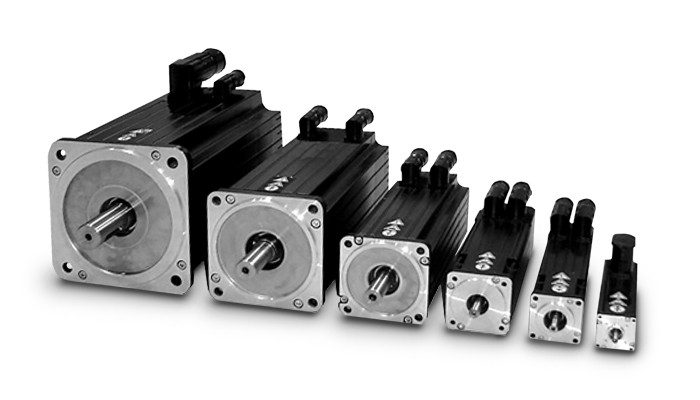

 COMPACT LENGTH AND LOW INERTIA

Moog Compact Dynamic Brushless Servo Motors are designed for highly dynamic servo applications where positioning times of 30 mSec or less are often the norm. The Moog Compact Dynamic Brushless Servo Motor offers one of the industry’s widest power ranges with standard models available at continuous stall torque ratings from 0.15 to 77 Nm (1.3 to 681 lb-in). The modular design is supported by a variety of options with Moog application engineers capable of supplying fully customized solutions.

Contact Our Experts >

Features

  • AC Servo Motor (Permanent Magnet Synchronous)
  • Low inertia, compact length
  • Cooling: natural (optional fan ventilation)
  • 2 DC-Bus voltage (325V dc / 565V dc) available

Benefits

  • Superior dynamics improves cycle time
  • Compact, lightweight
  • Proprietary low-cogging design
  • Rugged, minimum maintenance
  • Flexible design

Specifications

Dimensions Measuring Unit Compact Dynamic Brushless Servo Motor
Continuous Stall Torque M° Nm [lb-in] 0.15-77
[1.3-681]
Peak Torque Mmax Nm [lb-in] 0.5-240
[4.4-2124]
Rated Speed nN min-1 [rpm] 9000-2200
Rated Power PN kW [hp] 0.13-12 [0.2-16]
Rated Torque MN Nm [lb-in] 0.14-48 [1.2-425]
Moment of Inertia J Kg cm2
[lb-insec2 x 10-4]
0.09-152 [0.8-1345]
Position Transducer Standard
Optional
Resolver
Encoder
Temperature Monitoring N/A NTC or PTC
Brake N/A Optional
Rated bus voltage Vdc V 325/565
Certificate / Marks N/A CE, UL/cUL
Cooling N/A Natural
