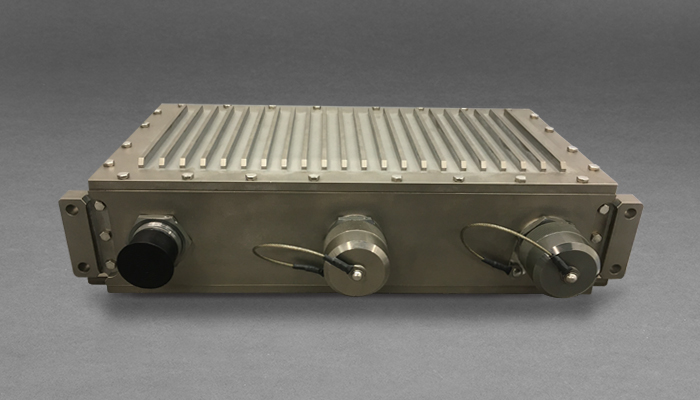

Viking 10+8 Port Ethernet Switch
Jump to:
Overview
Resources
Features
- 10+8 port L2+Ethernet switch in a rugged Aluminum housing with D38999 and TFOCA-II connector interfaces
- 8x100Base-FX and 1000Base-SX/LX or 10GBase-SR/LR Optical Ports
- 10x auto-negotiable 10/100/1000Base-T Ethernet ports
- Extended L2 Functionality, including Jumbo Frame support
- Compact size and light weight for simple mounting and installation
- Available with OD-CD, ZN-NI or electroless NI connector finishes
- Standard operating temperature range from -40°C to +85°C
- 28VDC power supply input (12-26VDC) per MIL-STD-704F/MIL-STD-1275D
- Conduction cooled
- Designed to MIL-STD-810, DO-160
- Consumes less than 25 Watts at 28VDC
- Weighs approx. 240 oz (15 pounds)
- Optional:
- LED indicator
- Other connector finishes
- Other connectivity options (different port count, form factors and fiber contacts)
Note: Other wavelength, mounting and port count options are available.
Typical Applications
- High speed network communications in harsh environments
- Industrial and military vehicle networking
- The MIL-DTL-38999, series III shells provide sealed interfaces that are water-tight to MIL-STD-810 when mated
- The 10 Gbps multimode optical fiber interface supports applications where copper cable link distance, bandwidth, weight or bulk make the use of twisted pair, twinax or quadrax copper conductors are unacceptable
- Vehicle distributed network architecture
- Backbone switch
