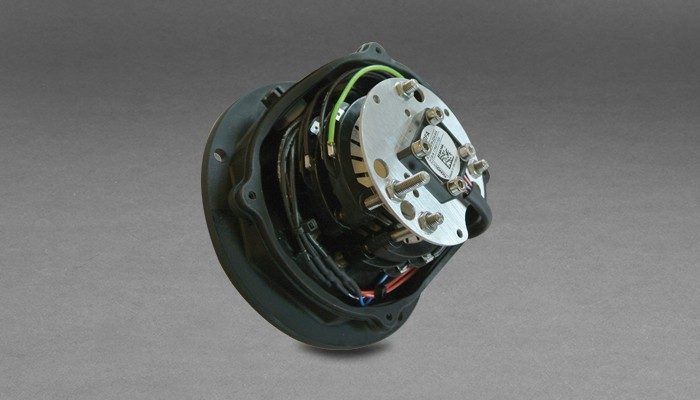

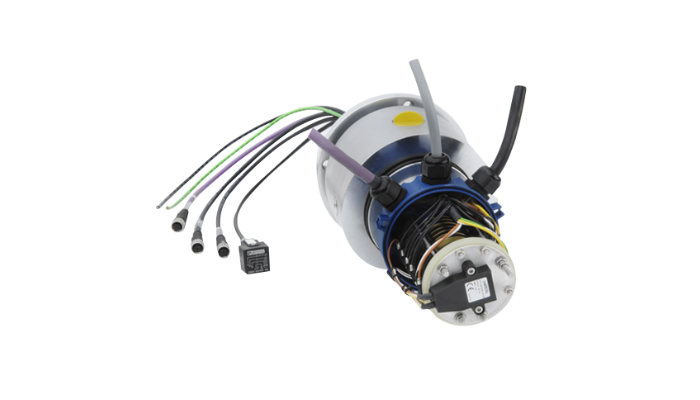

Slip Ring Modular System
SM SERIES
Jump To:
Overview
Resources
Related Products
Advantages
- Maintenance free, more than 10 million revolutions
- Housing parts are designed for difficult environmental conditions
- Sea water, UV and oil resistant
- Customized fixing flanges or torque arms
- Slip rings with customer specified connectors
Typical Applications
- Mobile Machinery
- Cranes
- Wheel excavators
- Material Handlers
| SM SERIES TECHNICAL INFORMATION | |
| Operating Speeds | up to 100 rpm |
| Current rating | < 1 mA up to 100 amps, customization to transfer > 1000 amps possible |
| Voltage rating | < 1 mV up to 680 volts AC/DC, customization to transfer > 1000 volts AC/DC possible |
| Data Transfer | CANbus up to 1000 kbit/sec Ethernet up to 100 Mbit/sec |
| Temperature Range | -58 °F up to 212 °F (-50 °C up to 100 °C) |
| Contact Material | Brass, alternative silver, rhodium plated available |
| Protection Class | IP69K |
| Compatible | With angle encoder: analog, digital CANopen, or customer specified With hydraulic rotary joint (swivel): fluid like: oil, gas, diesel, glycol, water Up to 7,300 psi in steel, casted steel, stainless steel Or 5,100 psi in aluminum |
