Floating Production Systems (FPS) Swivels

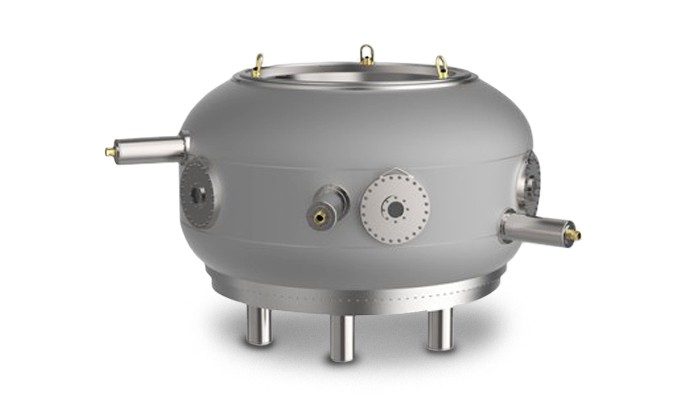

Slide Background

Slide Background

The search for new oil and gas reserves has continually forced offshore exploration companies to drill in deeper water. Under these conditions, water depth and harsh weather heavily influence which type of installation to use.

Moog designs, manufactures and delivers unique Floating Production Systems (FPS) swivels to meet the demanding requirements of offshore operators worldwide.

Typically comprised of electrical slip rings, hydraulic utility swivels and fiber optic rotary joints, swivels are used in a variety of Floating Production Systems (FPS) including buoys, turret moorings and offshore loading towers. Focal's floating production systems swivels permit the continuous delivery of electrical power and signals, hydraulic fluids, and fiber optic signals, with unlimited freedom of the vessel to weathervane about its mooring point. All Focal floating production system swivels are approved by a marine authority and are certified for use in hazardous locations.

Contact Us

Explore Our Swivels

Jump To:
Swivels
Junction Boxes
Ancillary Equipment
Field Services
Related Products

Swivels

FLUID

470 Toroidal Fluid Swivel
471 Inline Fluid Swivel

FIBER OPTIC

401 / 402 Fiber Optic Swivel

CALM BUOY

420 CALM Buoy Swivel



Model
 Signal Power Fiber Hazardous Area Protection Max. Bore Ø  Max. Height Max. Ø Typ. Weight

430

 Up to 600 passes at 6 A, 600 V Up to 20 passes at 200 A, 1 kV UP to 52 SM or MM passes Ex de NA 9.2 ft [2.8 m] 4.2 ft [1.3 m] 2500 lb [1150 kg]
432 Up to 600 passes at 6 A, 600 V Up to 20 passes at 200 A, 1 kV NA Ex de NA 9.2 ft [2.8 m] 5 ft [1.5 m] 6000 lb [2700 kg]
440 Up to 400 passes at 10 A, 1 kV Up to 50 passes at 1 kV NA Ex d or
Ex de		 4.3 ft [1.3 m] 14 ft [4.3 m] 6.6 ft [2 m] Depends on configuration
450 NA Up to 50 passes at 1 kV NA Ex p 8.2 ft [2.5 m] 26 ft [8 m] 16 ft [4.9 m]But sh
460 NA Up to 50 passes, max 36 kV* NA Ex p 8.2 ft [2.5 m] 26 ft [8 m] 16 ft [4.9 m]
461 NA Up to 50 passes, max 36 kV* NA

Ex d or

Ex de

 4.3 ft [1.3 m] 14 ft [4.3 m] 6.6 ft [2 m]
480 NA Up to 6 passes, max 145 kV* NA

Ex d or

Ex de

 Depends on configuration
*Maximum pass count depends on voltage

Junction Boxes





 Model
 Configuration Hazardous Area Protection Ingress Protection Dimensions Typ. Weight

410

 3 Terminals at 650 A, 15 kV Ex de IP66 / IP68-20 m Ø 20" [510 mm] x 42" [1070 mm] height 500 lb
[230 kg]
411 3 Terminals at 650 A, 11 kV Ex e IP66 72" [1800 mm] height x 36" [915 mm] width x 17" [430 mm} depth 500 lb
[230 kg]
412 3 Terminals at 650 A, 36 kV Ex d  IP66 / IP68-20 m Ø 30" [762 mm] x 55" [1400 mm] height 500 lb
[230 kg]
413 Up to 1 kV* Ex e IP66 / IP68-20 m 17.2" [435 mm] height x 30" [760 mm] width x 10" [255 mm] depth 500 lb
[230 kg]
414 Up to 1 kV* Ex e IP66 Depends on configuration Depends on configuration
*Terminal count depends on configuration

Ancillary Equipment



FPS Swivel Field Services

    ISTALLATION

  • Mechanical  - installation and verification
  • Electrical - terminations, connections and testing
  • Fiber Optic - terminations, connections fusion splicing and testing
  • Fluids - connections and testing
  • Pressurization Systems - poping / fitting, configuration and testing
  • Integration of mutliple swivels in advance to simplify installation onto the turret

    COMMISIONING

  • Onshore and offshore
  • Systems verification
  • Troubleshooting
  • Calivration / adjustments
  • Mechanical, electrical, fiber optic and fluid completions

    SERVICE

  • Onshore and offshore
  • Scheduled / planned maintenance
  • Inspection / survey
  • Spares
  • Upgrades
  • Refurbishment / seal replacement
  • Requalification / recertification

Technical Support

Telephone: +1-902-468-2263
