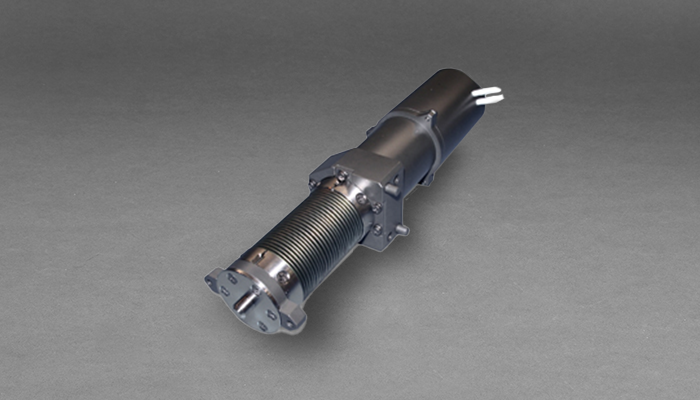

Cryogenic Fine Positioning Linear Actuator
The Cryogenic Fine Positioning Actuator product is designed to produce very small linear output steps using conventional actuator technology. Actuation is accomplished by using a small angle stepper motor coupled to a large gear reduction transmission. The linear excursion is accomplished with a fine preloaded leadscrew mechanism to eliminate backlash.
Key Features:
- High resolution and accuracy
- Redundant, 3-phase stepper motor
- High gear ratio gear transmission
- Sealed bellows assembly at the output
- Drive components based on existing heritage hardware
- Designed to operate in Cryogenic space environment
- Pre loaded 2 piece output member
Specifications
| Physical Characteristics | |
| Dimensions | 1.4 in. diameter and < 6.6 in. length |
Weight |
< 1.2 lbs |
| Performance | |
| Range of Travel | 0.45 inch |
Position Accuracy |
47 micro inches over 7200 linear steps |
| Linear Resolution | 17 micro-inches |
| Linear Velocity | 0.0035 inch/sec (nominal) |
| Physical Characteristics | |
| Power Consumption | 8 watts max. |
