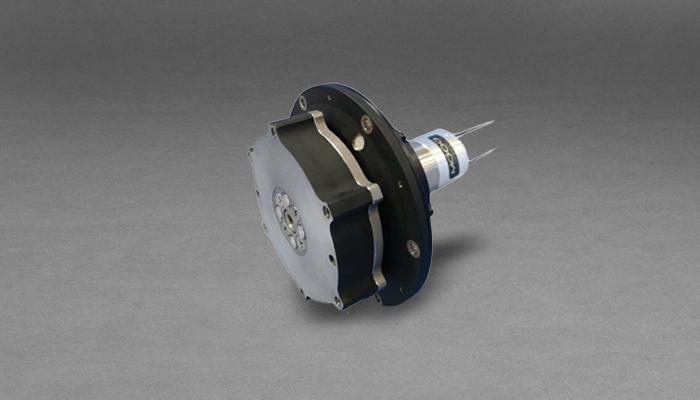

Micro3 Rotary Incremental Actuator
The Micro3 rotary incremental actuator is a compact, closely integrated design made up of two key elements: a rotary actuator and a standard Type 3 speed reducer and output flange. The motor is a small angle permanent magnet stepper with relatively high holding torque. The multi-stage speed reducer offers a large reduction ratio, low weight, low power consumption, zero backlash and high torsional stiffness. Co-axial nesting of the motor and transmission drive elements gives the unit low profile geometry. The actuator can be made available in two and three phase motors and has the identical mounting features of the Moog standard Type3 line of Rotary Actuators.
Key Features:
- Multi-stage speed reducer offers a large reduction ratio and fine resolution
- Low weight
- Low power consumption
- Zero backlash
- Low jitter
- High torsional stiffness
Specifications
| Characteristic | Units | 1 | 2 | 3 |
Output Step Size |
Degree | 0.00094 | 0.0015 | 0.003 |
| Steps Per Revolution | - | 384000 | 240000 | 120000 |
| Gear Reduction Ratio | - | 16000 | 5000 | 2500 |
| Motor Step Angle | Degree | 15 | 7.5 | 7.5 |
| Maximum Output Step Rate | pps | 640 | 600 | 600 |
| Maximum Output Speed | Deg/Sec | 0.6 | 0.9 | 1.8 |
| Output Running Torque | Nm | 90 | 28 | 14 |
| Unpowered Holding Torque | Nm | 120 | 38 | 20 |
| Torsional Stiffness | Nm/Rad | 17000 | 17000 | 17000 |
| Power Consumption | Watts | 3 watts at ambient | 3 watts at ambient | 3 watts at ambient |
Load Capability
| Characteristic | Units | |
Axial |
N | 9800 |
| Transverse | N | 6670 |
| Moment | Nm | 325 |
| Total Assembly Weight | Grams | 1600 |
Environment
| Characteristic | Units | |
Temperature Range |
C | -45 to +85 |
| Vibration Level | Grams | 26 |
