Overview
Moog has leveraged state-of-the-art radiation tested commercial components, standard architectures such as VPX, and modern software operating systems to provide a high performance, highly capable Single Board Computer (SBC) for communications, networking, or general purpose applications.
The Cody series of 3U and 6U SpaceVPX Single Board Computers (SBC) can be integrated into customer VPX systems or utilized within Moog products such as the Solid State Recorder (SSR).
Features:
- Rad Tolerant, multi-core ARM Processor
- > 2 GHz operating frequency
- Supports multiple 1G and 10G Ethernet
- Data-path accelerators
- 100Gbps ingest/egress rates (optical or copper)
- Trust architecture capable
- Modern radiation tolerant FPGA
- FMC like mezzanine board provides flexible payload interfaces (Optical or Copper based) to FPGA
- Radiation Tolerant – 50KRad TID, SEL immune to 75MeV
- SpaceVPX (VITA 78), 3U and 6U
- Ruggedized VITA REDI, conduction cooled
- LEO to GEO mission orbits
- Flexible core and peripheral power control
- VxWorks and Linux OS support
- Middleware fault mitigation support

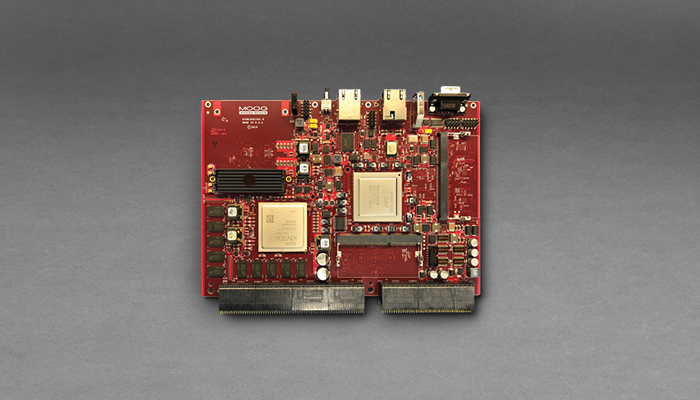

Rad Tolerant, Mulri-core ARM Communications Single Board Computer
Applications:
- EGateway, Router, Switch Network/ Communications Functions
- EO, IR, and RF sensor data processing
- AI, Machine Learning, Machine Vision
- Data Compression
- Data/File Management
