New Horizons For The Hydraulic Simulation Table Using Higher Frequencies
A High-Frequency Simulation Table is a dynamic system designed to perform research and development tests. It requires an appropriate configuration, coupled with a Test Controller, and features a state-of-the-art digital architecture using the latest hardware and software.
It is standard in the industry to reach 50 Hz with 6 Degrees of Freedom (DOF) hydraulic solutions, but it requires our expertise to reach higher frequencies through customized solutions. Our standard hydraulic simulation table can achieve a frequency up to 100 Hz and well above when customized.

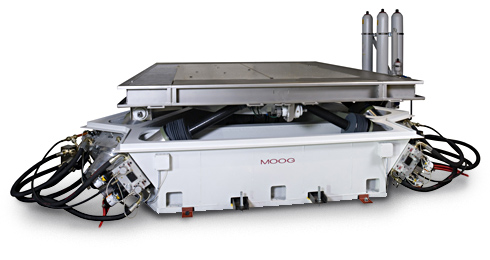

This dynamic High Frequency Hydraulic Simulation Table is comprised of a platform that is as compact and light as possible and a base jig consisting of base plates on which stress-resistant hydrostatic jacks are assembled with rods jutting from the jacks connected to the platform structure.
Both position and acceleration are controlled by the system through integrated control hardware and software. The Simulation Table can support heavy loads, while requiring only a minimum of space in your test lab.
