INTEGRATED AVIONICS UNIT

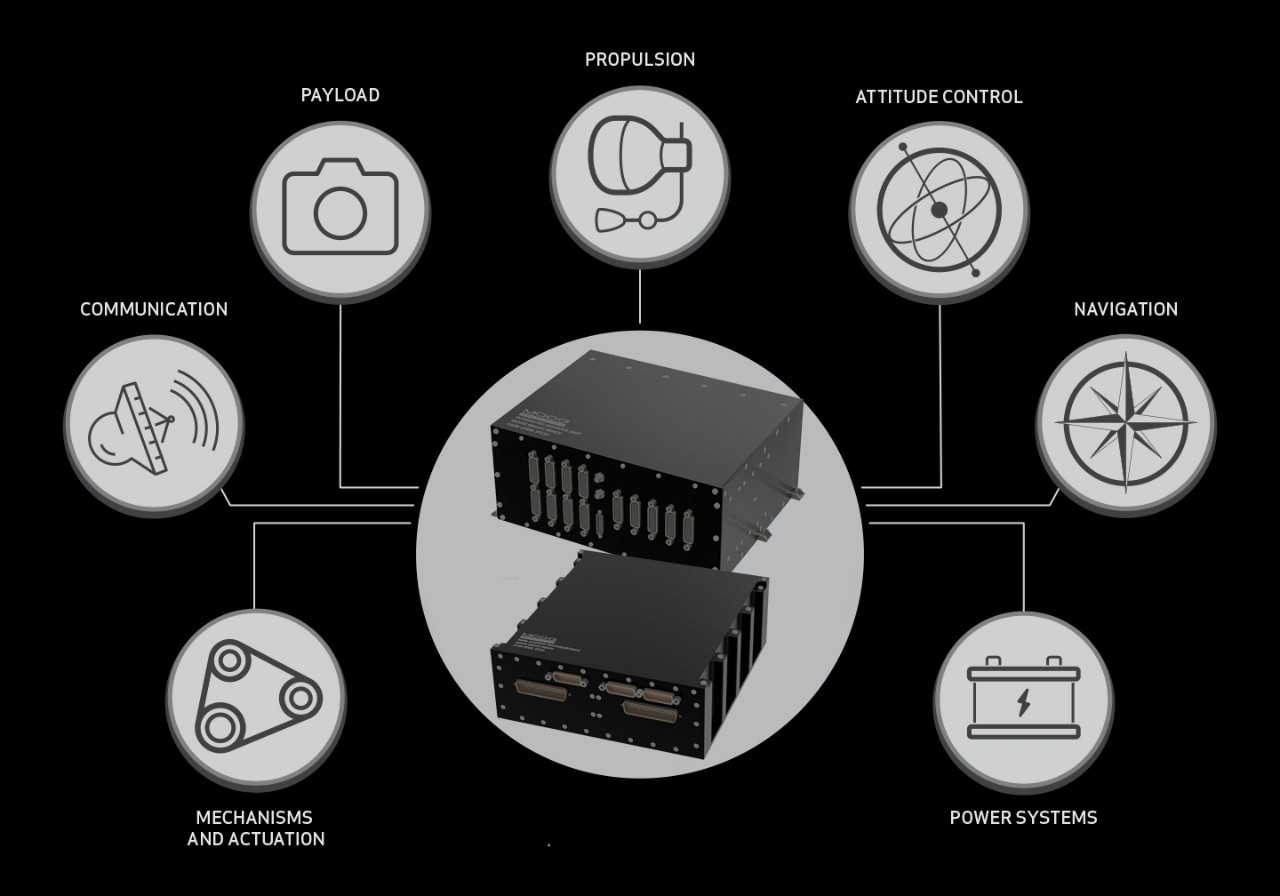

Moog’s Integrated Avionics Unit (IAU) offers solutions for Command and Data Handling/Electrical Power Subsystem (C&DH/EPS) for a full range of spacecraft and payload applications. Configurations include single string and redundant systems. The IAU leverages TRL-9 legacy heritage with options for tailoring and/or customized new designs to meet mission requirements. The IAU is optimized for orbit and radiation requirements and utilizes traditional EEE parts in Level-1, -2, and -3 part grades.
Key Features
- Integrated C&DH and EPS Sub-System Functionality
- Modular and Scalable 3U Form Factor based Architecture
- SWaP (Dependent on # I/O Boards)
- Orbits: LEO – GEO, Lunar, Interplanetary
- Mission Life
- Environment: GEVS
- EEE Parts: Level 1, Level 2, Level 3
- BRE440 SBC Based Processor Board
- Uplink Hardware Command Decode
- Variable Downlink Rates and formats (CCSDS, SGLS…)
- Flash or SDRAM based Mass Memory
- Battery Charge Management
- Robust Safety and Fault Interlocks
- Dead Bus Recovery / EOL Disposal Capability
