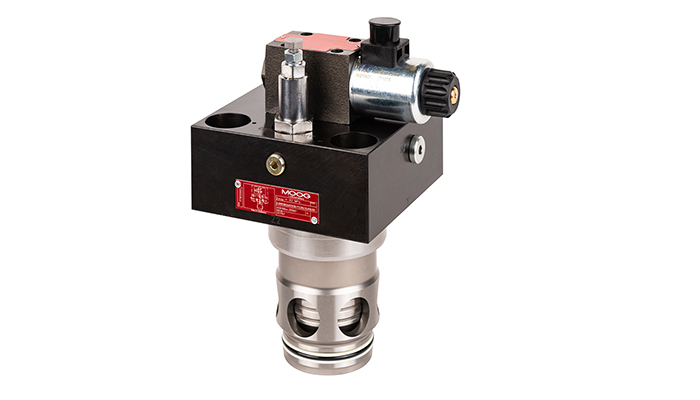

2-Way Slip-in Pressure Relief Cartridge Valves - DBV, DBM and DBE Series

Pilot-operated 2-way slip-in pressure relief cartridge valves are used to protect hydraulic systems against excessively high pressures, and/or for setting and limiting a given system pressure in hydraulic systems.

Our DBV, DBM and DBE series pressure relief cartridge valves offer a variety of different options including simple relief functions, dual pressure settings and unloading functions.

CONTACT OUR EXPERTS >

Jump To:
Overview
Specifications
Resources

Overview

3 different types of pressure relief valves are available:

  • 2-Way Pressure Relief Cartridge Valves with one, two or three pressure relief levels - Type DBV
  • 2-Way Pressure Relief Cartridge Valves with unloading functionality - Type DBM
  • 2-Way Pressure Relief Cartridge Valves with electrical proportional pressure setting - Type DBE



Specifications

Specifications

Nominal Sizes

16, 25, 32, 40, 50, (63, 80, 100)

Maximum Operating Pressure

 420 bar (6,000 psi)

Cavity

ISO 7368
