024 Series Servo Valves

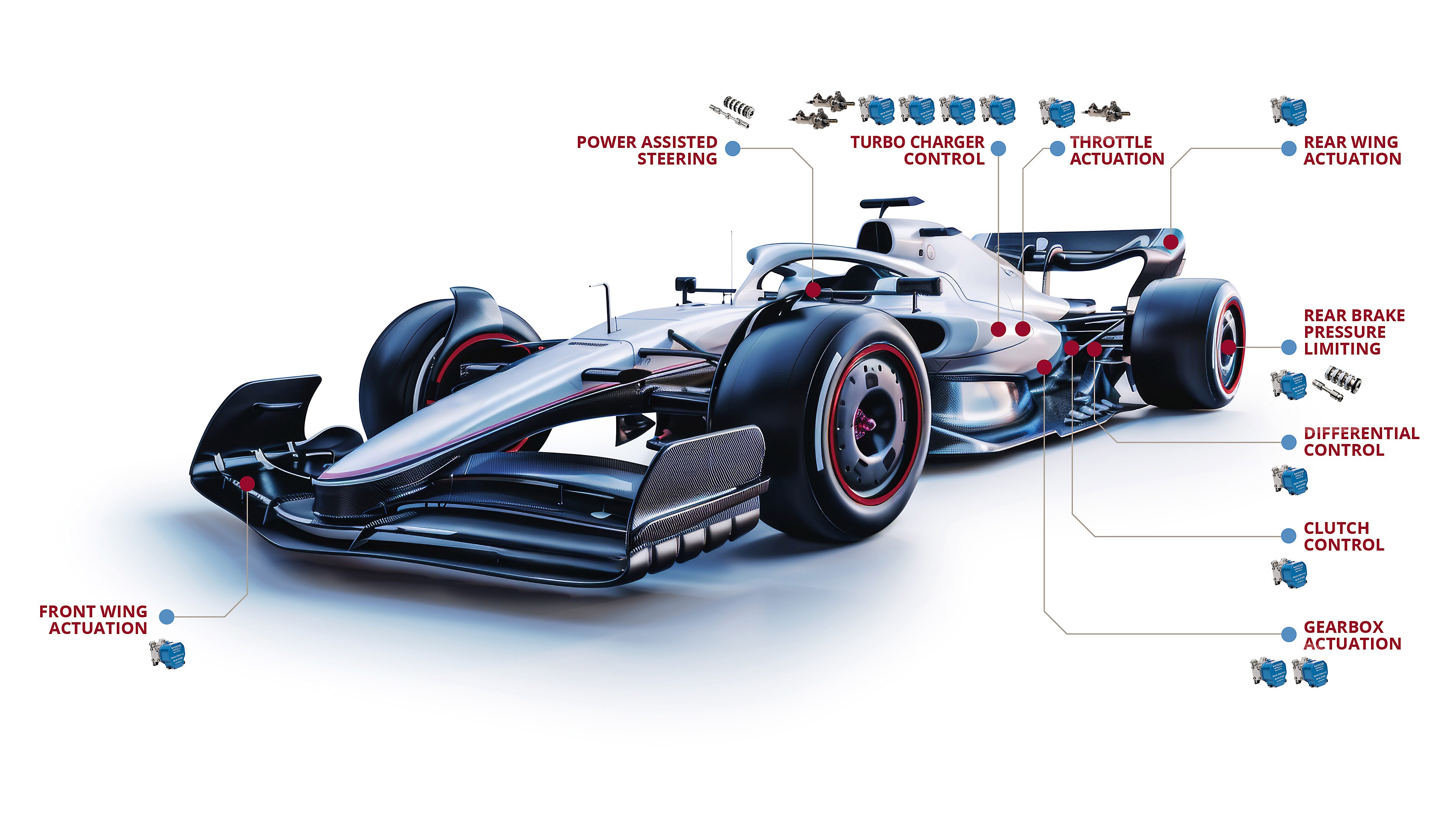

Moog’s 24 Series is the smallest and lightest nozzle-flapper valve ever made, making it ideal for high-performance motorsport applications where weight and size are critical. Moog is proud to supply the entire F1 grid (?) with 24 Series servo valves that control some of the most demanding chassis and powertrain controls in motorsport.

The 24 series can withstand the harshest of environments with a shock rating up to 50g, and operating temperature up to 135 °C, all whilst delivering rapid and precise control.

CONTACT OUR EXPERTS >

Jump To:

Features

Specifications

Resources

Compact & Lightweight: The 24 series is the smallest and lightest servovalve on the market weighing just 95g, (3.35 oz)
High Flow Capability: Delivering 7.5lpm* (2USg), the 24 series is exceptionally power-dense
Aerospace Heritage: Based on Moog’s durable and robust 30 series servo valve used widely for aircraft fight controls, ensuring proven performance
Precise Control: Features a high response, two-stage construction that provides precise and repeatable control of hydraulic flow
Versatile Use: FIA Homologated for use within F1, and suitable for a wide range of high-performance miniature hydraulic applications
Typical Applications: F1, subsea equipment, special effects in film and theatre, mobile robotics

Specifications
Hydraulic Data
Rated Flow*	0.4 to 7.5 l/min (0.1 to 2.0 USg/min)
Standard Configurations	0.4, 1.0, 1.5, 2.0, 3.8, 5.0, 7.5 l/min (0.1, 0.3, 0.4, 0.5, 1.0, 1.3, 2.0 USg/min)
Max. Operating Pressure	280 bar (4,061 psi)
Performance Data
100% Step Response**	1.8 ms
Frequency Response***	up to 400 Hz
Electrical Data
Rated Signal****	10 mA
Standard Configurations	10 mA
Physical Data

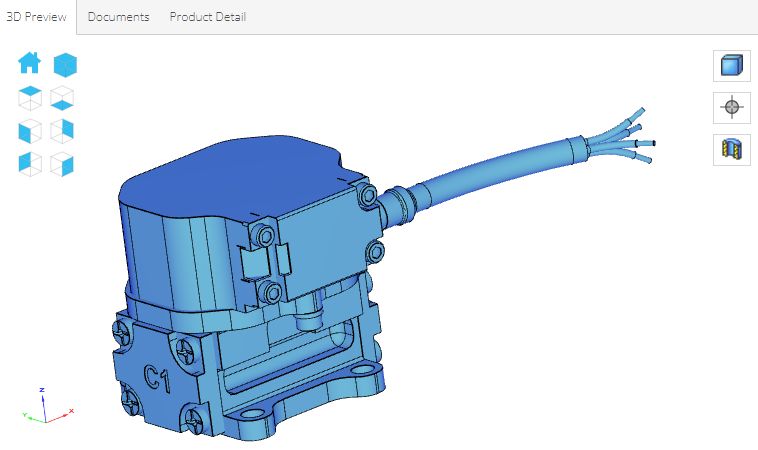

Size (Mounting Pattern)	Moog Standard
Weight	95 g (3.35 oz)
Additional Options	High Efficiency, Vented Motor Cap, Logic Visit Moog.com/miniature for additional options
