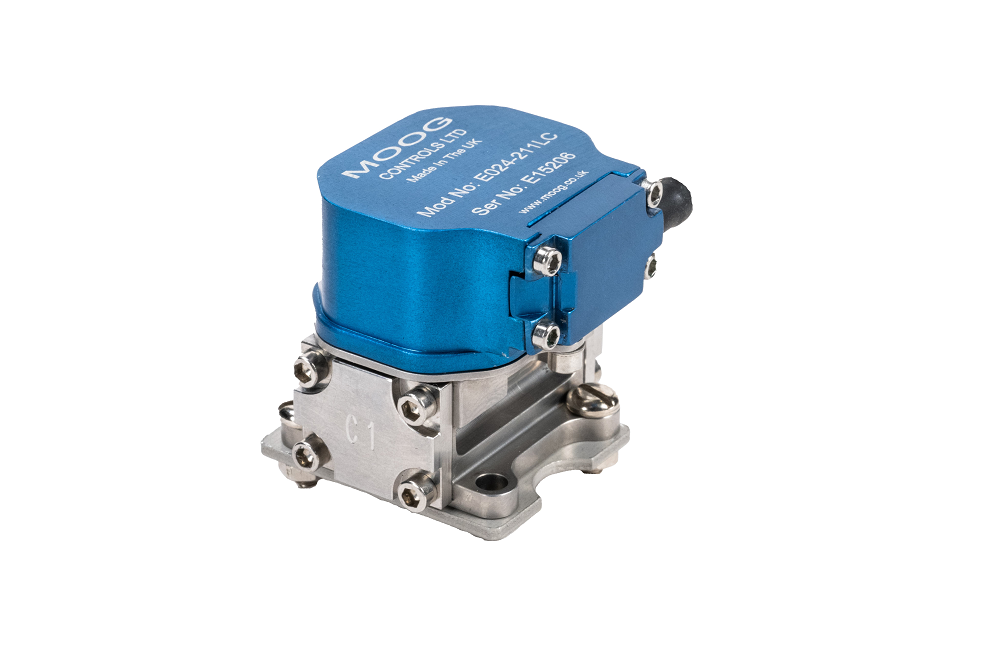

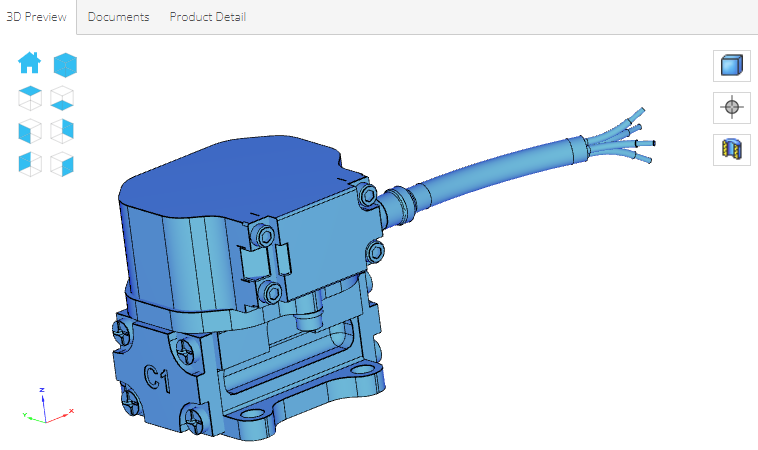

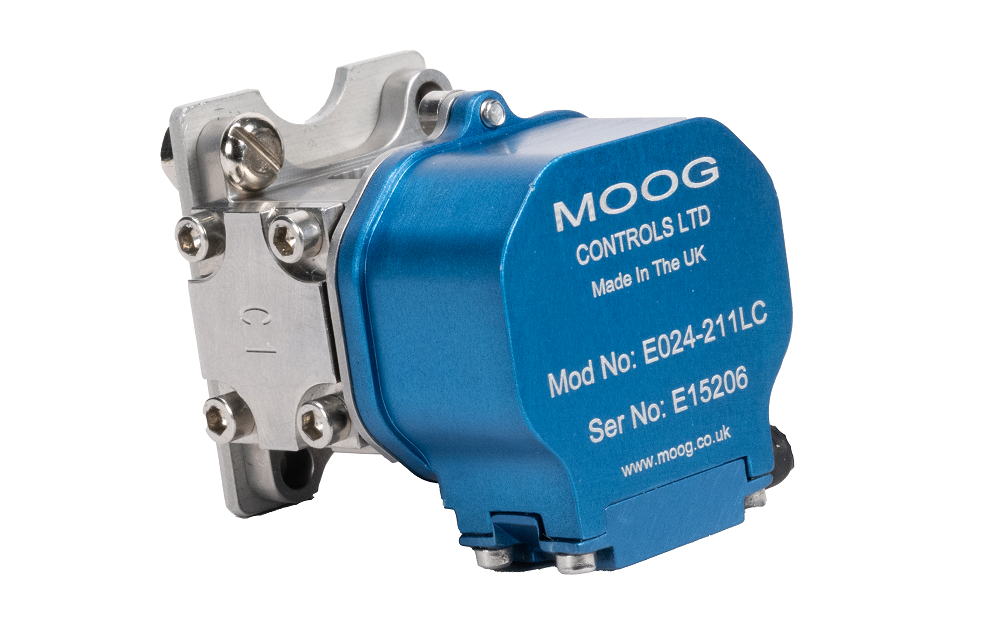

24 Series Servo Valves
Jump To:
Features
Specifications
Resources
Related
Features:

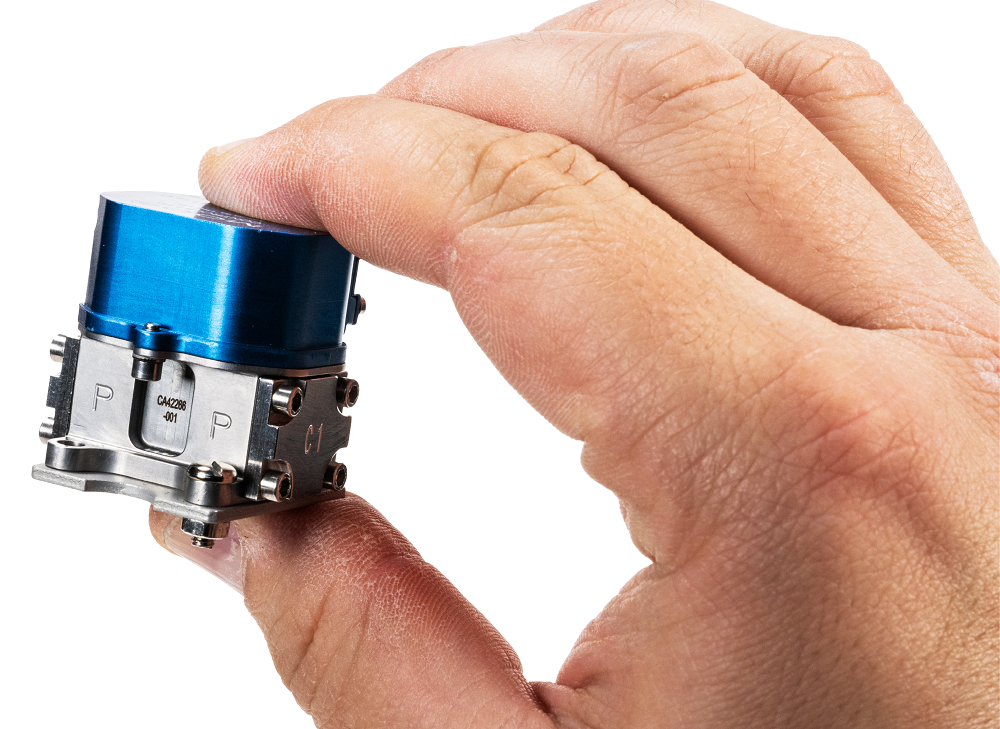

- Compact & Lightweight: The 24 series is the smallest and lightest servovalve on the market weighing just 95g, (3.35 oz)
- High Flow Capability: Delivering 7.5lpm* (2USg), the 24 series is exceptionally power-dense
- Aerospace Heritage: Based on Moog’s durable and robust 30 series servo valve used widely for aircraft fight controls, ensuring proven performance
- Precise Control: Features a high response, two-stage construction that provides precise and repeatable control of hydraulic flow
- Versatile Use: FIA Homologated for use within F1, and suitable for a wide range of high-performance miniature hydraulic applications
- Typical Applications: F1, subsea equipment, special effects in film and theatre, mobile robotics
| Specifications | |
| Hydraulic Data | |
| Rated Flow* | 0.3 to 7.5 l/min (0.1 to 2.0 USg/min) |
| Standard Configurations | 0.3, 0.4, 1.0, 1.5, 2.0, 3.8, 5.0, 7.5 l/min (0.1, 0.3, 0.4, 0.5, 1.0, 1.3, 2.0 USg/min) |
| Max. Operating Pressure | 280 bar (4,061 psi) |
| Performance Data | |
| 100% Step Response** | 1.8 ms |
| Frequency Response*** | up to 400 Hz |
| Electrical Data | |
| Rated Signal**** | 10 mA |
| Standard Configurations | 10 mA |
| Physical Data | |
| Size (Mounting Pattern) | Moog Standard |
| Weight |
95 g (3.35 oz) |
| Additional Options | High Efficiency, Vented Motor Cap, Logic |
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi System Pressure
*** at 90° Phase Lag
**** Coils in Parallel
